Railway
Subrack 19" Modular version

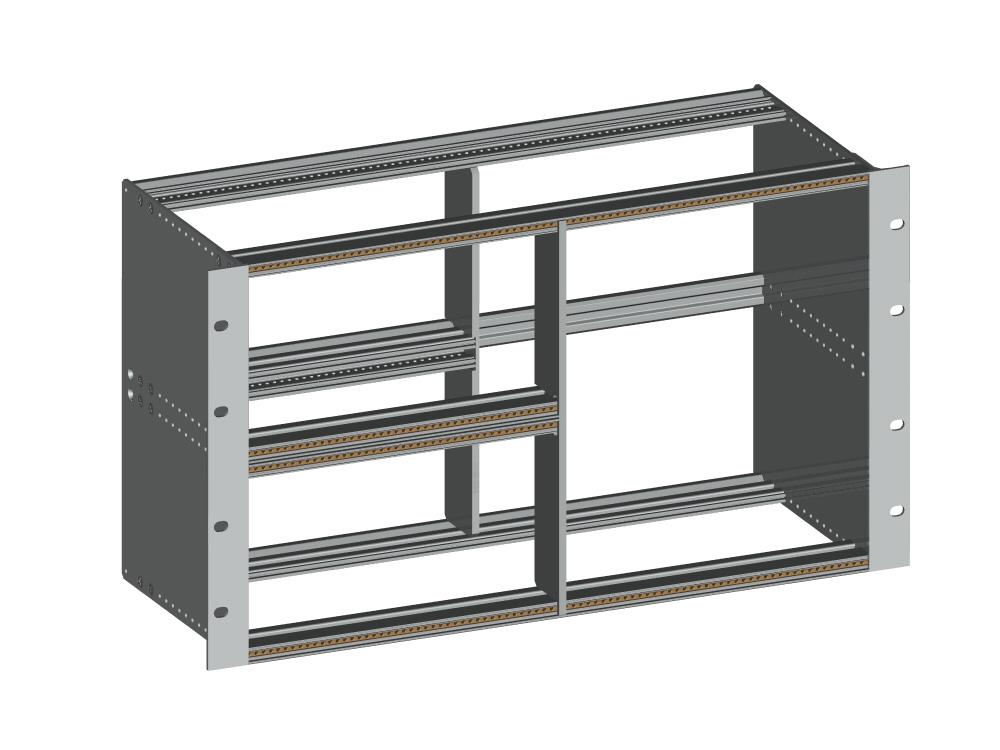

SR-101 19" 6HE modular 3HE+3HE with splitting bars standard version
SR-101 19" 3HE+3HE modular standard version subrack with splitting bars
Standard and customisable rack cabinets
Subrack 19"6HE modular 3HE+3HE with splitting bars standard version
Download exclusive content
Ask for information

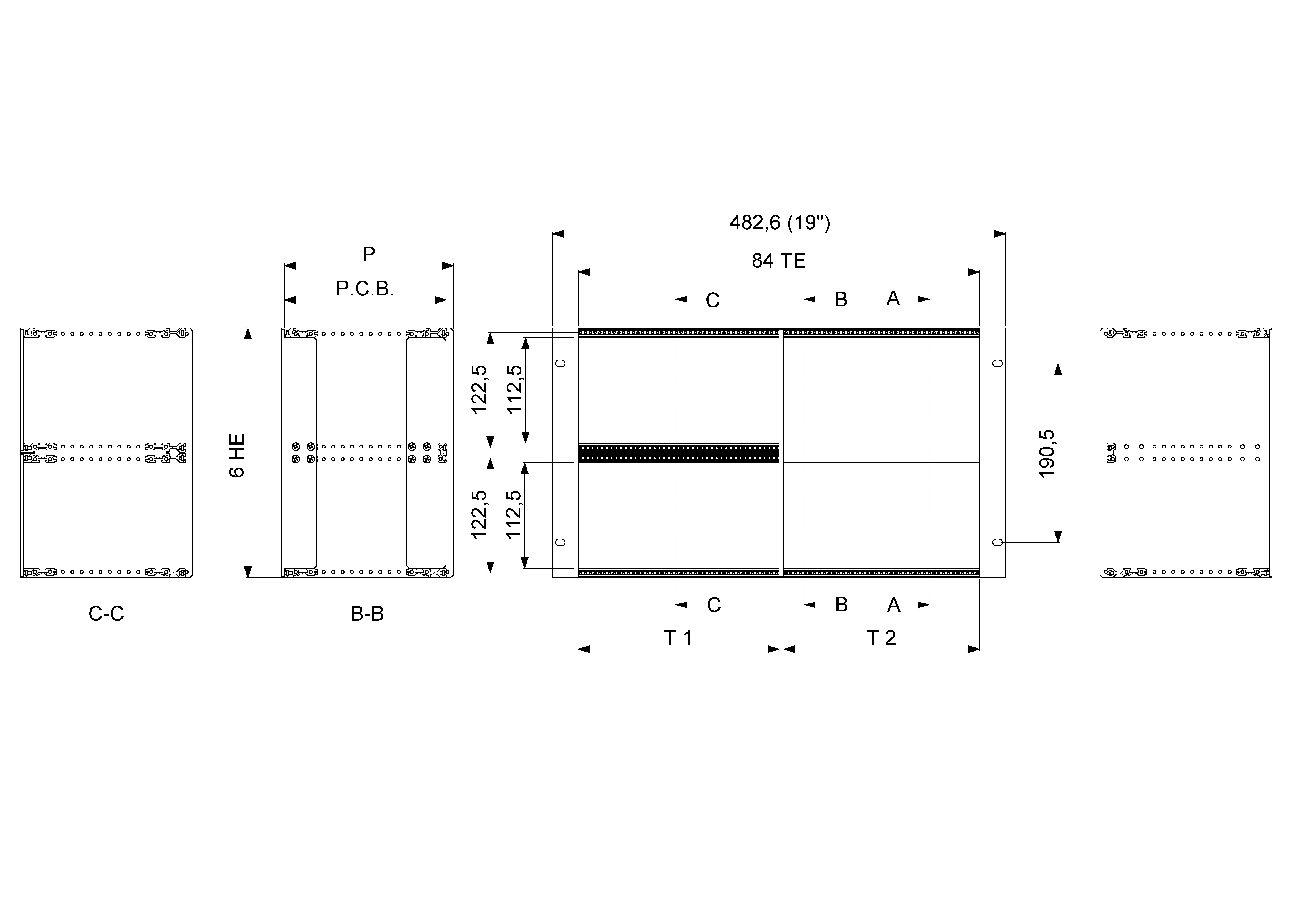

Data sheet and included components
order number
HE
PCB Depth
P (mm)
SR-101-11-**
6
160
180
SR-101-12-**
6
220
240
SR-101-13-**
6
280
300
SR-101-14-**
6
340
360
SR-101-15-**
6
400
420
front and rear beam
side panel
19” fixing support bracket
M 2.5 threaded bar
fronta and rear splitting bars
M4 screws
middle profile
19” extruded aluminium beams and support brackets
Stainless steel sides
Galvanized steel threaded rod and card guide support -
