Railway
Subrack 19" Modular version
SR-101 19" 6HE modular 3HE+3HE rear cover version
SR-101 19" 6HE modular standard version rear cover
Standard and customisable rack cabinets

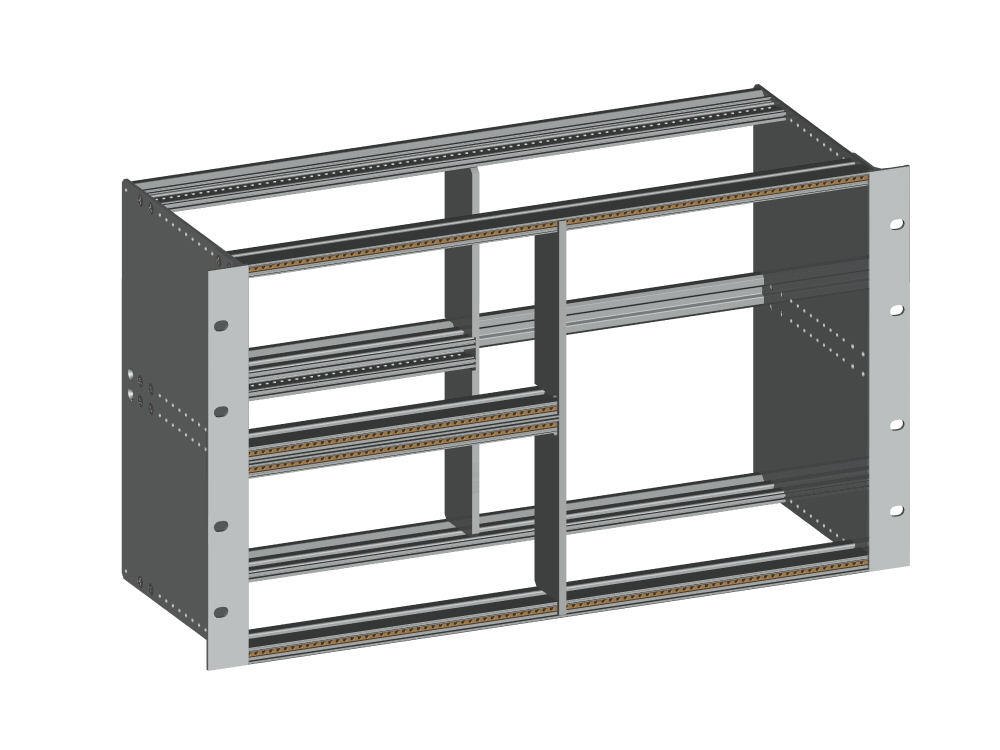

Subrack 19"6HE to compose 3HE+3HE rear cover version
Download exclusive content
Ask for information

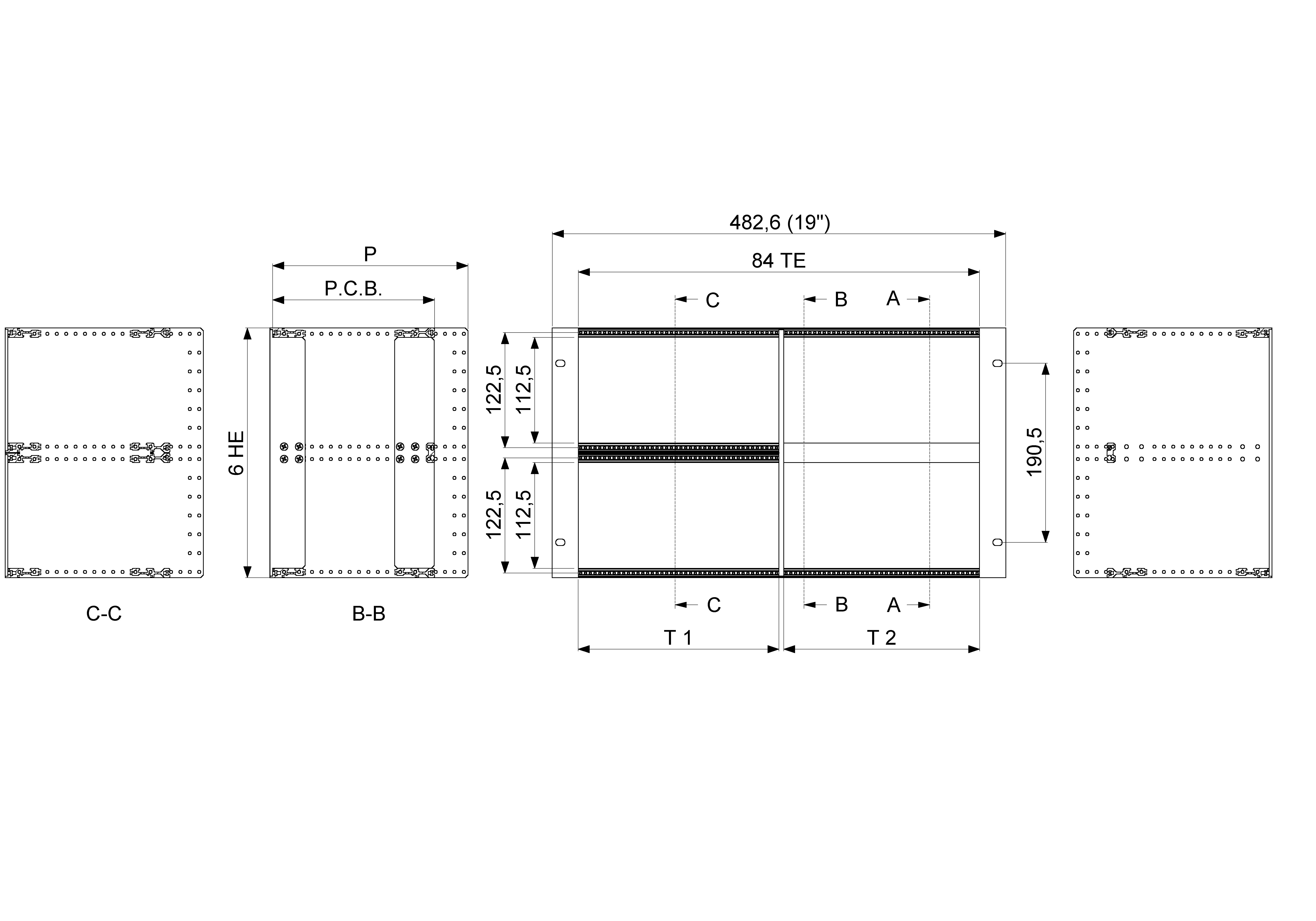

Data sheet and included components
order number
HE
PCB Depth
P (mm)
SR-100-06
6
160
208
SR-100-07
6
220
268
SR-100-08
6
280
328
SR-100-09
6
340
388
SR-100-10
6
400
448

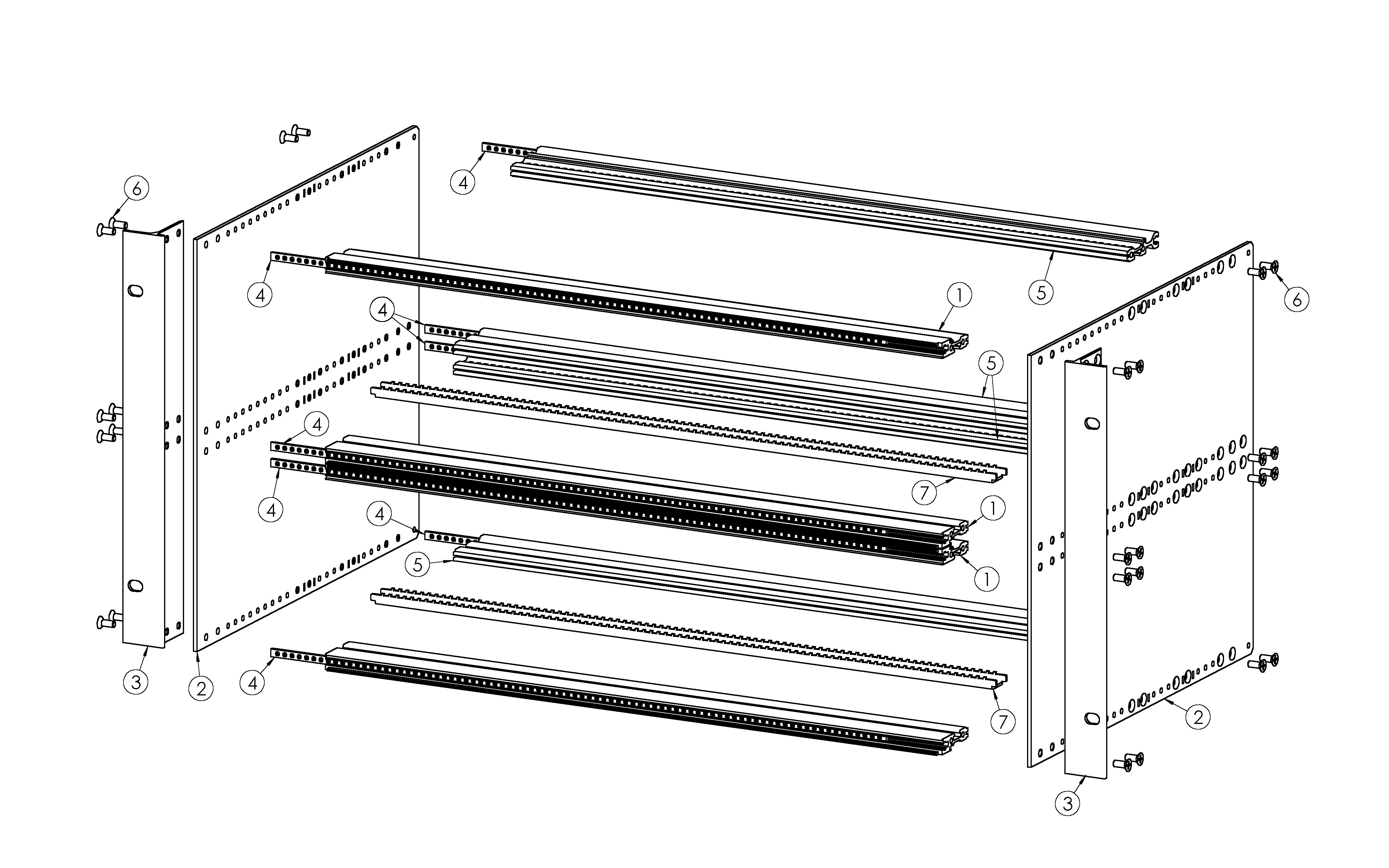

front beam
side panel
19” fixing support bracket
M 2.5 threaded bar
rear beam
M4 screws
(**) card guide support
(**) supplied with 19” depth subrackà ≥280
19” extruded aluminium beams and support brackets
Stainless steel sides
Galvanized steel threaded rod and card guide support -
